Why redundancy matters for compact industrial switches

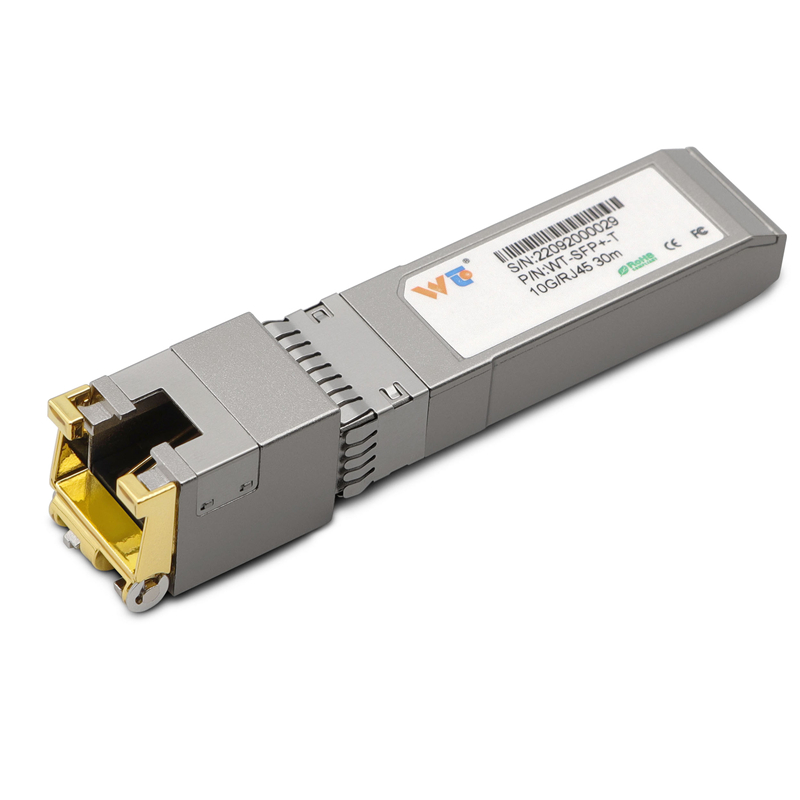

When a four‑port industrial switch loses power, it’s not just a single link that drops — conveyor controls, access panels, and remote I/O can go dark. Many engineers solve part of that risk by keeping a spare SFP path or a copper fallback in place, for example using an sfp to rj45 transceiver to switch to copper when optical ports fail. Practical deployments in utilities and edge data centers often aim for uptime targets like 99.999% (five nines); those targets define what “redundant enough” really means. This article compares common architectures so you can match redundancy to the risks on your site, backed by field‑level criteria rather than slogans. EEAT: Based on hands‑on installs and industry uptime norms, this guidance ties technical choices to measurable outcomes.
Common redundancy architectures and their tradeoffs
Three patterns dominate: single PSU with UPS, dual hot‑swap PSUs, and dual‑feed (separate AC sources). Each has pros and cons. Single PSU + UPS is cheap and fine for short outages. Dual hot‑swap PSUs give immediate local failover but add weight and cost. Dual‑feed protects against a breaker trip at the panel level. Choose by likely fault domain: if a site has frequent mains work, dual‑feed wins; if PSU failures are the main cause, dual hot‑swap is better. Include SFP module and RJ45 transceiver design choices in the evaluation since link redundancy interacts with power planning. A caveat — redundant gear increases complexity, so document every power chain and label every cable to avoid human error during maintenance.
How redundancy affects the network stack and maintenance
Redundancy is more than extra hardware. Implement link monitoring, graceful shutdown, and power sequencing to prevent inrush trips. On a four‑port device, plan for which ports carry critical signals and prioritize them for redundant feeds or PoE power budgets. Hot‑swap PSUs must be supported by firmware that logs failovers; otherwise, a silent swap hides repeated faults until a bigger incident happens. And pay attention to thermal design — added PSUs change airflow and can shorten component life if not tested.
Practical tests, common mistakes, and a short aside
Test failover under load: simulate a PSU cut and confirm port forwarding, VLAN state, and SNMP traps. Verify SFP fallbacks by swapping an optical module with a copper rj45 transceiver and observing link convergence times. Common mistakes include trusting a UPS without validating battery runtime, and neglecting firmware that patches power sequencing bugs — those details matter. Also, teams often forget to test soft failures like firmware hangs — a redundant PSU won’t help a hung switch, so include watchdog timers in your checklist.
Operational teardown: what to inspect on site
When you open a box for an operational production teardown, examine the following: PSU model and MTBF, connector types, hot‑swap capability, and whether SFP cages accept both optical SFPs and copper transceivers. Track labels during the teardown as main_keyword and variation_keyword so logs match cabling in the field. Verify that the board’s power plane isolates port power from control power and that PoE budgets are partitioned when applicable. Record test steps and results so future teams can repeat the same validation.
Three golden rules for selecting redundancy
1) Define acceptable downtime in minutes per year and buy to that metric — convert “five nines” or your target into concrete MTTR and MTBF goals. 2) Match redundancy to fault domain: protect against the most likely single point of failure first (panel feed, PSU, or port), not the fanciest topology. 3) Validate under realistic loads and automated failure modes; monitoring and logs must show successful failovers, or the redundancy is just inventory.
WINTOP offers tested transceivers and modular options that simplify covering both link and power failure cases — proven in field installs and easy to document for audits. —
