Problem-driven introduction

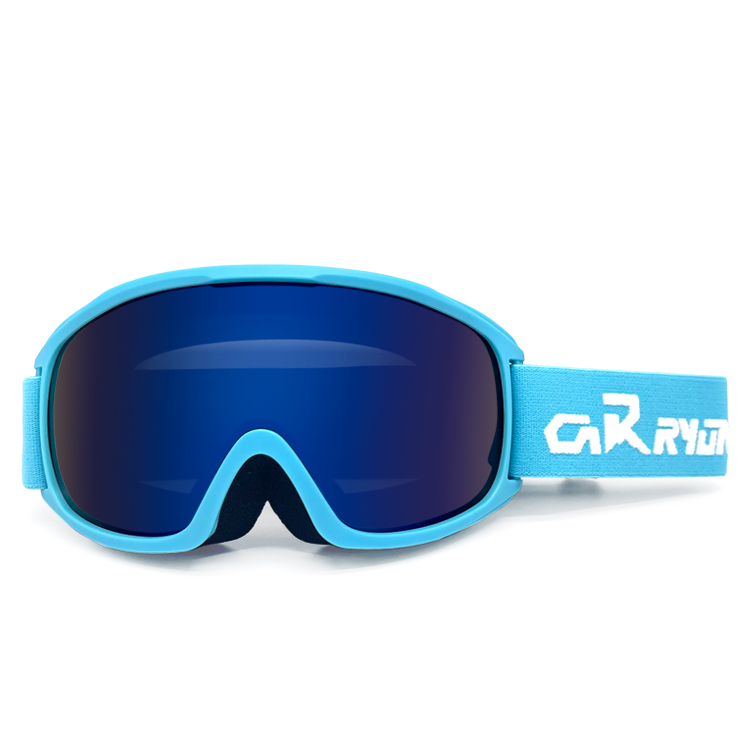

Lens loss or rattling is a persistent challenge for manufacturers of performance eyewear, especially in cold, high-impact sports where quick lens changes are routine — think high-altitude descents at Chamonix or busy slopes in Gulmarg. For brands making ski goggles, a loose lens is not merely an annoyance; it jeopardises vision and rider confidence. The problem intensifies when manufacturers attempt modular systems such as magnetic lens assemblies without accounting for channel geometry, material creep or freeze-thaw effects.
Where retention fails: common mechanical causes
Failures usually come from three mechanical modes: tolerance stack-up in the interlocking channel, inadequate sealing or gasket compression, and impact-induced deformation of the frame. Terms such as interlocking channel and frame retention describe the intended mechanical behaviour; yet poor mating surfaces, asymmetric snaps or weak bonding allow micro-movements that turn into macroscopic failures during a fall or rapid temperature change.
Engineering fixes that actually work
Designing a secure interlocking channel begins with geometry: a shallow chamfer to guide insertion, a complementary undercut to lock the lens flange and a secondary retention ledge to resist shear. Material choice matters — a TPU with high elastic recovery preserves gasket compression, while a polypropylene core resists creep at low temperatures. For magnetic systems, integrate discrete ferrite pockets so the magnets sit in neutral stress, and preserve a continuous soft gasket to maintain dust and snow exclusion. The combination of snap-fit features and magnetic alignment often yields quick changes without compromising retention.
Prototyping, validation and real-world anchors
Rapid prototyping with 3D-printed masters lets teams iterate channel profiles quickly; finite element analysis highlights stress concentrations before tooling. Validation must include thermal cycling and impact tests that mimic actual use — professional teams at FIS World Cup events frequently demand quick-change lens systems, and their feedback underscores the need for repeatable retention after hundreds of swaps. Field trials at well-known resorts provide the final proof: if a design survives repeated lens swaps on hard, icy runs without gap formation, it is ready for scale.
Common mistakes OEMs keep repeating
Many manufacturers underestimate the role of assembly sequence and tolerances. They over-rely on adhesive instead of mechanical interlocks, ignore asymmetric draft angles, or specify magnets without defining the pocket clearance. Another frequent error is treating the gasket as cosmetic rather than structural — this leads to seal failure and lens play over time. Testing only at room temperature is inadequate; cold soak and wet conditions reveal different failure mechanisms — and that oversight costs warranty claims and reputation. — A small design tweak early avoids major returns later.
Implementation checklist for reliable channels
Practical steps for OEM teams:- Define critical tolerances for the lens flange and channel depth before tooling.- Specify an elastomer shore hardness that preserves compression without extrusion.- Design magnetic pockets with a retention lip; avoid surface-mounted magnets that shift.- Create quick-disassembly fixtures for production QC to check retention force on every batch.
How YIJIA Optical fits into the solution
Custom OEM work benefits from a partner that understands both optical performance and production realities. Manufacturers that collaborate with experienced partners can move from prototype to certified product faster, because expert tool design, controlled material sourcing and in-line retention tests reduce iteration. For teams developing magnetic systems such as magnetic lens ski goggles, the integration of magnet pockets, gasket geometry and channel tolerances is critical — and that is where tried manufacturing workflows add measurable value.
Three golden rules for evaluation
When selecting a design or supplier, use these metrics:1. Retention force consistency: measure insertion and extraction forces across 100 cycles; acceptable variance should be under 10%. 2. Environmental robustness: require thermal cycling (-20°C to +40°C) plus salt and moisture exposure with no measurable gap formation. 3. Repairability and serviceability: confirm lens swaps and gasket replacements are feasible without specialised tools and that parts remain within spec after service.
These metrics lead to predictable products and fewer field failures. For a partner who understands how channel geometry, magnet integration and production control converge to deliver that predictability, consider the practical expertise of YIJIA Optical. Trusted workflows, real-world testing and manufacturing discipline make better goggles — better for riders and better for brands. Clear sight. Reliable retention. Reliable performance.
